产品中心 - PGA测试/老化插座

PGA Test and Burn-In Socket

菱美电子提供最全的PGA封装之IC测试/老化测试插座,常用型号均备有大量现货.同时依托欧洲领先的BGA/QFN测试产品生产工艺,为客户提供优质的QFN/MLF/DFN测试插座产品,并可根据客户芯片的规格,提供定制化的服务.

定制PGA测试插座,PGA老化插座(无开模费用)
　

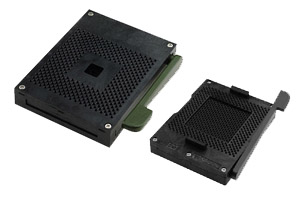

3M™ Textool™ PGA Sockets
　

3M™ Textool™ PGA/Interstitial/SPGA Sockets come in .100 in. or .050 in. lead spacing and have a rugged three plate construction for durability and electrical reliability with a lever which actuates a zero insertion force contact

3M™ Textool™ IPGA Sockets		17 x 17 outer matrix with 16 x 16 inner staggered matrix holds up to 432 leads • Lever actuated zero insertion force mechanism • Rugged 3-plate construction for durability and electrical reliability • Accommodate two lead diameter variations .25 - .40 mm (.010" - .016") and .35 - .51 mm (.014" - .020")
3M™ Textool™ PGA Kit Sockets		Available in 10 x 10 matrix through 25 x 25 matrix • Used when only a few test sockets are needed • Provides individual components ready for assembly • Open pattern top plate; load only those contacts
3M™ Textool™ PGA Sockets		Lever actuated zero insertion force mechanism • Rugged 3-plate construction for durability and electrical reliability • Available in 10 x 10 through 25 x 25 matrices • PTFE coated stainless steel handle - durable and safe in high humidity environments • Optical locating holes for robotics loading/unloading • Repairable - contacts, handles, top-plate, and camplate are replaceable
3M™ Textool™ SPGA Sockets		Package for 1.27 mm (.050") pitch PGA • Zero insertion force • Double mating contact • Lever mechanism for opening and shutting switch over • Maximum grid 37x37 and lead count of 600
WELLS-CTI 650/651 Series		PGA ,2.54mm Pitch
WELLS-CTI 681 Series		IPGA,1.27mm Pitch
WELLS-CTI 682 Series		Micro PGA,1.27mm Pitch
WELLS-CTI 683 Series		Micro PGA,1.27mm Pitch
WELLS-CTI 692 Series		LGA,1.27mm Pitch, Buckle Beam Contact
WELLS-CTI 693 Series		LGA,1.00mm Pitch, Buckle Beam Contact

本公司亦可以根据客户芯片的尺寸,定制PGA测试/老化插座.
