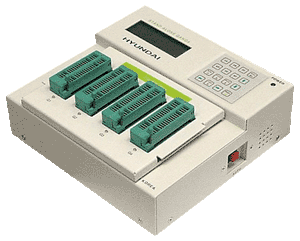

Hynix StandAloneGang4

• Input voltage : AC 220V

• Size (mm) : 210(L) x 200(W) x 67(H)

• Interface with PC : Parallel interface (Only during changing firmware or downloading buffer)

• Supports all kinds of HMS(GMS)800 series GMS90 Series, and 77C1000/1A

• Does not require PC for programming

• Firmware can be upgraded from PC to support future devices

• Device protection circuit is included internally

• Very simple and easy to use with simple key menu

详细信息<<

Hynix PGM-plus

• Input voltage : DC 15V (600~700mA)

• Size (mm) : 142(L) x 102(W) x 21(H)

• Interface with PC : Parallel interface

详细信息<<

MP8011A 专用量产编程器

．Gang Programming System Specific for EPROM, EEPROM and FLASH-Based Microcontrollers

．Single, Universal and Upgradable Base Unit and Device-Specific Programming Heads

．Up to Eight Devices Programmable at Once

．Blank Checking, Reading, Erasing, Programming, Verifying and Auto Operations

．Programming Algorithms Approved by Silicon Manufacturers

．Windows 9x/Me/2000/NT/XP User Interface

．Parallel Port Connection

详细信息<<

SAMSUNG GW-PRO2 Gang Programmer

We support a series of production quality 8-gang programmers for the Sam-sung OTP and MTP microcontrollers of SAM4(S3P7xxx series), SAM8(S3P8xxx, S3P9xxx series), CalmRISC(S3FBxxx, S3FKxxx series) and ARM7(S3F4xxx, S3F3xxx) family. They are operated in stand-alone mode for factory programming without PC and can also be conne-cted a PC to program devices, set up operation mode or download data files. Its unique features allow the user to quickly and securely program devices. Simple one-key operation requires no special technical expertise from your production staff.
[ Device Supported ] All Samsung serial type OTP microcontrollers of SAM4(S3P7xxx), and SAM8(S3P8xxx,    S3P9xxx) series including S3P1860 device.All Samsung serial type MTP(Flash) microcontrollers of SAM4, SAM8, CalmRISC and  ARM7 families with 3.3V or 5.5V operating Voltage.

详细信息<<

SAMSUNG SPW2plus Programmer

The SPW2plus single socket programmer allows development engineers to program user application software into Samsung's entire OTP/MTP(Flash) microcontrollers of S3P1860, SAM4(S3P7xxx), SAM8(S3P8/9xxx, S3F8/9xxx), CalmRISC(S3FBxxx, S3FKxxx), ARM(S3F4xxx, S3F3xxx) families and standard EPROM products(27C256,27C512). User-friendly driver software provides easy-to-use operation including complete control of all programming functions and device settings.

[ Device Supported ] All Samsung OTP and MTP devices of S3P1860, SAM4(S3P7xxx), SAM8(S3P8/9xxx, S3F8/9xxx) CalmRISC(S3FBxxx, S3FKxxx), and ARM(S3F3xxx, S3F4xxx) family.Standard EPROM:27(C)256 and 27(C)512.Supports MTP(Flash) devices with 3.3V operating voltage
