"Hi-rel" PLCC Socket SMT Type

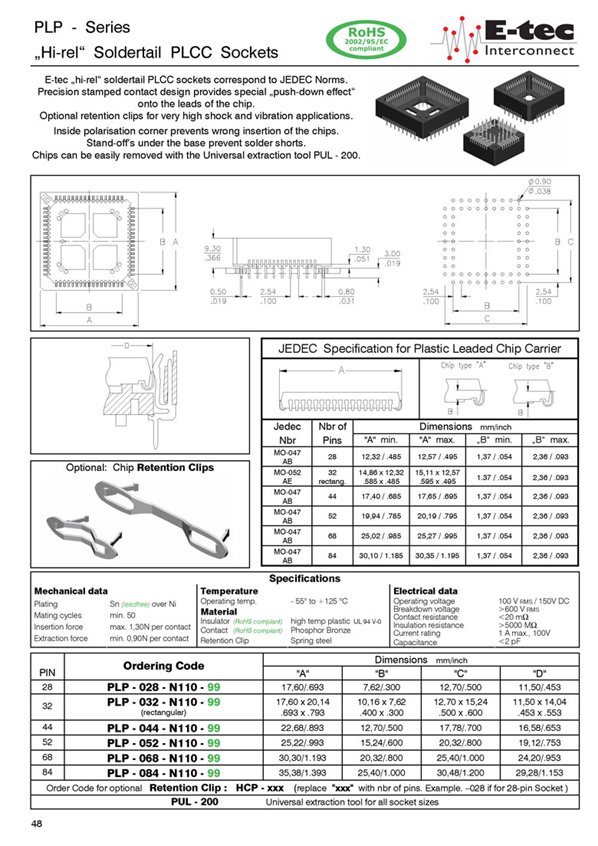

"Hi-rel" PLCC Socket soldertail Type

LCC Socket

LCC Socket

LCC - Series LCC Sockets JEDEC Type "C"

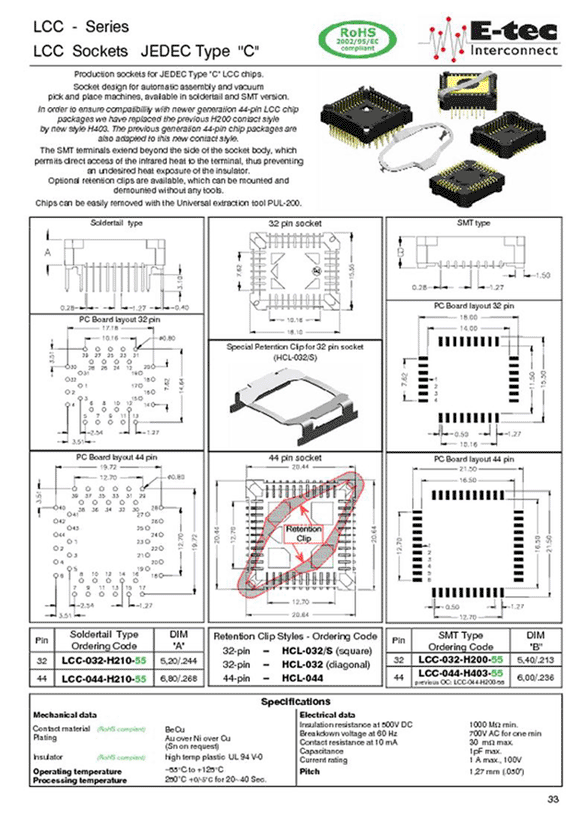

Production sockets for JEDEC Type "C" LCC chips. Socket design for automatic assembly and vacuum pick and place machines, available in soldertail and SMT version. In order to ensure compatibility with newer generation 44-pin LCC chip packages we have replaced the previous H200 contact style by new style H403. The previous generation 44-pin chip packages are also adapted to this new contact style. The SMT terminals extend beyond the side of the socket body, which permits direct access of the infrared heat to the terminal, thus preventing an undesired heat exposure of the insulator. Optional retention clips are available, which can be mounted and demounted without any tools. Chips can be easily removed with the Universal extraction tool PUL-200.

Pin	Soldertail Type Ordering Code	DIM "A"	Retention Clip Styles - Ordering Code	Pin	SMT Type Ordering Code	DIM "B"
32	LCC-032-H210-55	5,20/.244	32-pin = HCL-032/S (square) 32-pin = HCL-032 (diagonal) 44-pin = HCL-04	32	LCC-032-H200-55	5,40/.213
44	LCC-044-H210-55	6,80/.268		44	LCC-044-H403-55 previous OC: LCC-044-H200-55	6,00/.236

"Hi-rel" PLCC Socket SMT Type

高品质PLCC插座（"Hi-rel" SMT PLCC SOCKET)

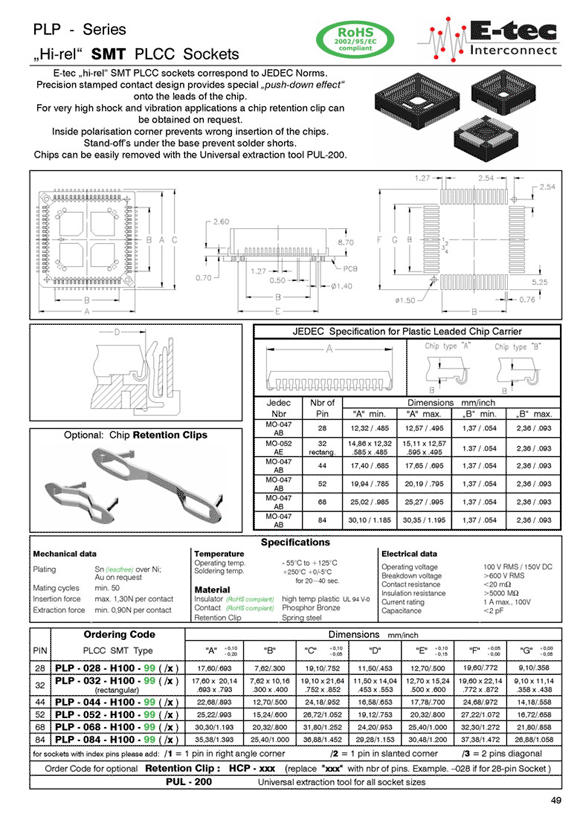

E-tec „hi-rel“ SMT PLCC sockets correspond to JEDEC Norms.

Precision stamped contact design provides special „push-down effect“ onto the leads of the chip.

For very high shock and vibration applications a chip retention clip can be obtained on request.

Inside polarisation corner prevents wrong insertion of the chips. Stand-off’s under the base prevent solder shorts. Chips can be easily removed with the Universal extraction tool PUL-200.

"Hi-rel" PLCC Socket soldertail Type
