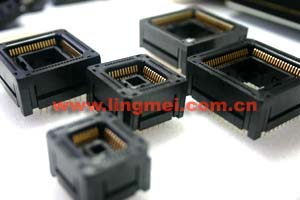

PLCC Test and Burn-In Socket

首页 产品中心IC 测试座PLCC测试座

您现在的位置:IC 测试座-PLCC测试座
　
  • Plastic Lead Chip Carrier (Clamshell)  IC51 Series
  • Clamshell socket for PLCC packages

Data Sheets tb_ic51plcc.pdf
　
Part Number Pin Count Pitch A B C(Open) D(Closed)
IC51-0204-602 20 1.27 31.5 26.0 10.0 20.0
IC51-0284-399 28 1.27 36.0 30.0 10.0 20.5
IC51-0324-453 32 1.27 35.0 30.0 9.0 19.5
IC51-0444-400 44 1.27 40.0 34.0 10.0 20.0
IC51-0524-411-1 52 1.27 43.0 38.0 10.0 23.5
IC51-0684-390-1 68 1.27 49.0 42.0 10.0 23.5
IC51-0844-401-1 84 1.27 55.0 48.0 10.0 23.5
IC51-1004-405-1 100 1.27 60.6 54.0 10.0 23.5
IC51-1244-410-1 124 1.27 65.0 60.0 10.0 23.5
　

　
  • Plastic Lead Chip Carrier (Open Top) IC120 Series
  • Clamshell socket for PLCC packages
  • Auto-ejecting type for automated operation (IC is inserted in operation and pushing the cover raises it for easy IC removal)
  • Available for 2 types of IC orientation (Live-bug & Dead-bug)

Data Sheetstb_ic120plcc.pdf
Part Number Pin Count IC insert. Sockets Dim.
A B C
IC120-0184-002 18 DB 17 21.5 18.0
IC120-0184-102 18 LB 17 21.5 19.3
IC120-0184-202 18 DB 17 21.5 18.0
IC120-0184-302 18 LB 17 21.5 19.3
IC120-0204-005 20 DB 20 20 18.0
IC120-0204-205 20 DB 20 20 18.0
IC120-0204-405 20 DB 20 20 18.0
IC120-0224-001 22 DB 17 21.5 18.0
IC120-0224-101 22 LB 17 21.5 19.3
IC120-0224-201 22 DB 17 21.5 18.0
IC120-0224-301 22 LB 17 21.5 19.3
IC120-0284-008 28 DB 23 23 18.0
IC120-0284-108 28 LB 23 23 19.3
IC120-0284-208 28 DB 23 23 18.0
IC120-0284-308 28 LB 23 23 19.3
IC120-0284-408 28 DB 23 23 18.0
IC120-0284-508 28 LB 23 23 19.3
IC120-0324-009 32 DB 22.5 25 18.0
IC120-0324-109 32 LB 22.5 25 19.3
IC120-0324-209 32 DB 22.5 25 18.0
IC120-0324-309 32 LB 22.5 25 19.3
IC120-0324-409 32 DB 22.5 25 18.0
IC120-0324-509 32 LB 22.5 25 19.3
IC120-0444-006 44 DB 28.0 28.0 18.0
IC120-0444-106 44 LB 28.0 28.0 19.3
IC120-0444-206 44 DB 28.0 28.0 18.0
IC120-0444-306 44 LB 28.0 28.0 19.3
IC120-0444-406 44 DB 28.0 28.0 18.0
IC120-0444-506 44 LB 28.0 28.0 19.3
IC120-0524-007 52 DB 30.0 30.0 18.0
IC120-0524-107 52 LB 30.0 30.0 19.3
IC120-0524-207 52 DB 30.0 30.0 18.0
IC120-0524-307 52 LB 30.0 30.0 19.3
IC120-0524-407 52 DB 30.0 30.0 18.0
IC120-0524-507 52 LB 30.0 30.0 19.3
IC120-0684-004 68 DB 35.0 35.0 18.0
IC120-0684-104 68 LB 35.0 35.0 19.3
IC120-0684-204 68 DB 35.0 35.0 18.0
IC120-0684-304 68 LB 35.0 35.0 19.3
IC120-0684-404 68 DB 35.0 35.0 18.0
IC120-0684-504 68 LB 35.0 35.0 19.3
IC120-0844-003 84 DB 40.0 40.0 18.0
IC120-0844-103 84 LB 40.0 40.0 19.3
IC120-0844-203 84 DB 40.0 40.0 18.0
IC120-0844-303 84 LB 40.0 40.0 19.3
IC120-0844-403 84 DB 40.0 40.0 18.0
IC120-0844-503 84 LB 40.0 40.0 19.3

　
　

　

　
